Engineered Component

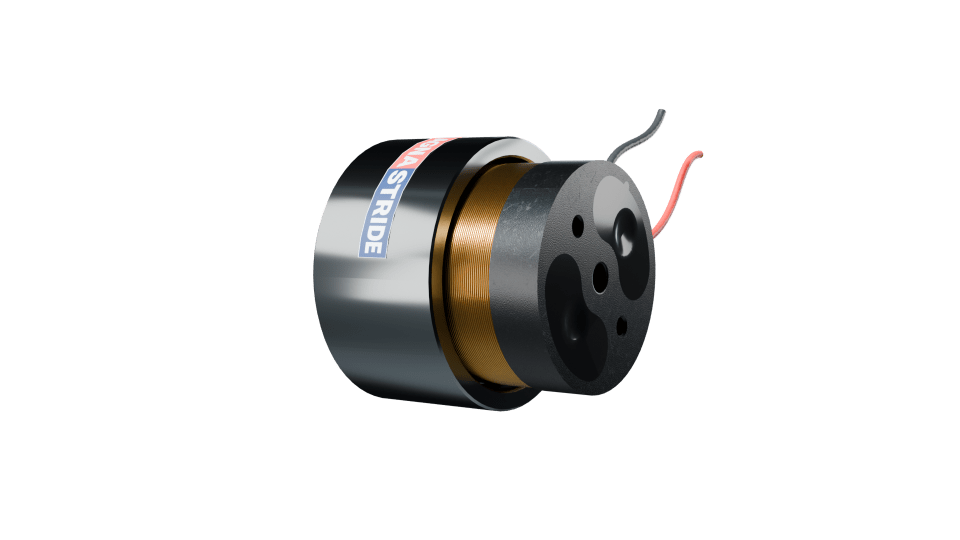

Voice Coil Motors
Precision components for advanced engineering applications
Product Overview
A high-performance solution for direct-drive actuation, voice coil motors offer frictionless motion and excellent repeatability. With fast dynamic response and precise control, they are suited for demanding, high-precision applications.
Product Engineering Visual
Key Advantages
- Plug & Play
- Industry-Leading Power Density
- 10-Year Performance Guarantee
- ZERO maintenance
Standard Products
MS-301MS-302
Application Areas
Medical devices such as biothesiometer, imaging systems and surgical tools
Precision positioning systems for fast, accurate linear motion
Semiconductor and electronics manufacturing equipment
Optics and laser systems for fine focus and alignment control
Technical Specifications
| Stroke Length | 5-20mm |
|---|---|
| Continuous & Peak Force | 5-20N |
| Operating Voltage | 12-24V DC |
| Response Time / Bandwidth | 5-50 ms |
| Position Accuracy | +/-1 to 5 µm |
| Repeatability | ±5 to ±20 microns (µm) |
Need Custom Engineering?
Submit Product InquiryOur application engineers respond to all technical queries within 24 hours.
